BORE SPACERS

Bore spacers are used to support various arrays of ducts within a bore casing until it is filled with grout. They ensure accurate alignment and positioning of the ducts, making it easy to identify utilities for repairs or servicing.

MORE ABOUT BORE SPACERS

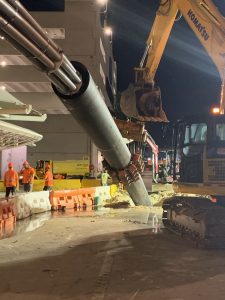

Bore spacers are used in Directional Drilling or Horizontal Directional Drilling (HDD). This method is often employed to run utilities, such as power, telecom, and fiber optics, beneath obstacles like roads, lakes, and large structures. Being trenchless, it minimizes the impact on the soil.

Imagine contractors installing utilities under major highways. They want to avoid stopping traffic, tearing up the road, installing the utilities, and then replacing the road. For structures like lakes, this method allows them to install utilities underneath rather than through, above, or around them.

TrenchSafe Bore Spacers

Advantages of Bore Spacers / Directional Drilling

  • Minimal Disruption: Reduces disturbance to surrounding soil.
  • Installation: Allows utilities like power, telecom, and fiber to be run under high-traffic areas (e.g., highways) with minimal disruption.
  • Utility Obstacle Navigation: Enables utilities to be installed under and around obstacles like rocks and bodies of water.
  • Ease of Installation: Simplifies the process of installing utilities.
  • Accurate Spacing: Maintains precise conduit spacing and separation, aiding in the easy identification and isolation of problem lines for repairs or service.
  • Reduced Downtime: Minimizes utility downtime in case of issues.
  • Versatility: Accommodates multiple conduit sizes and designs.
  • Customization: Can be custom fabricated to fit customer specifications.

Features / Options for Bore Spacers

  • Single Wall Spacers: Basic single-layer spacers.
  • Dual Wall Spacers: Enhanced double-layer spacers.
  • Material Options: Available in HDPE and Polypropylene.
  • Material Thickness: Ranges from 3/8” to 1”.

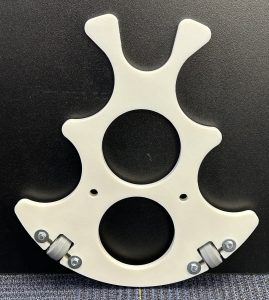

  • Soft Tread Wheels: Low friction wheels in various sizes, with weight capacities from 400 to 1700 lbs.
  • Contoured Edges: Designed to improve grout flow.
  • Flow Holes: Available in any size or shape to further enhance grout flow.
  • Stabilization Features: Cable holes or slots to prevent conduit layout from twisting during installation.
  • Customization: Tailored to meet and exceed customer needs.

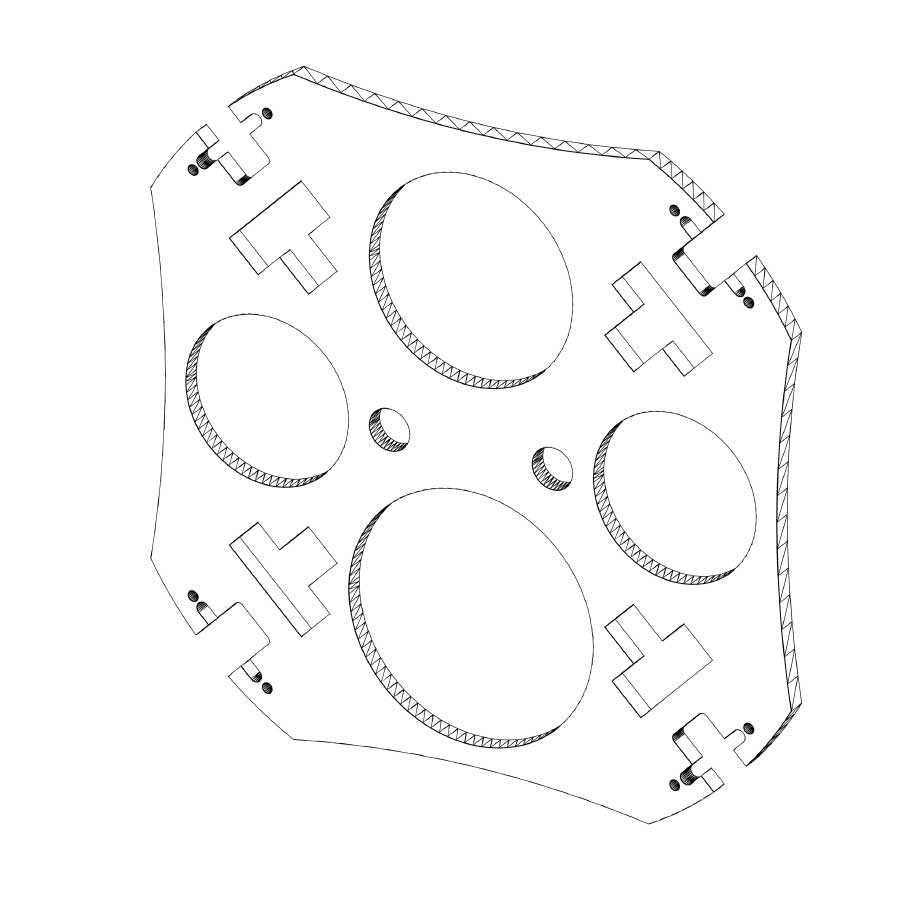

Bore Spacers 2
Bore-Spacers-2-600x600
Bore-spacer-1
Bore-spacer-2
Bore-spacer-3
